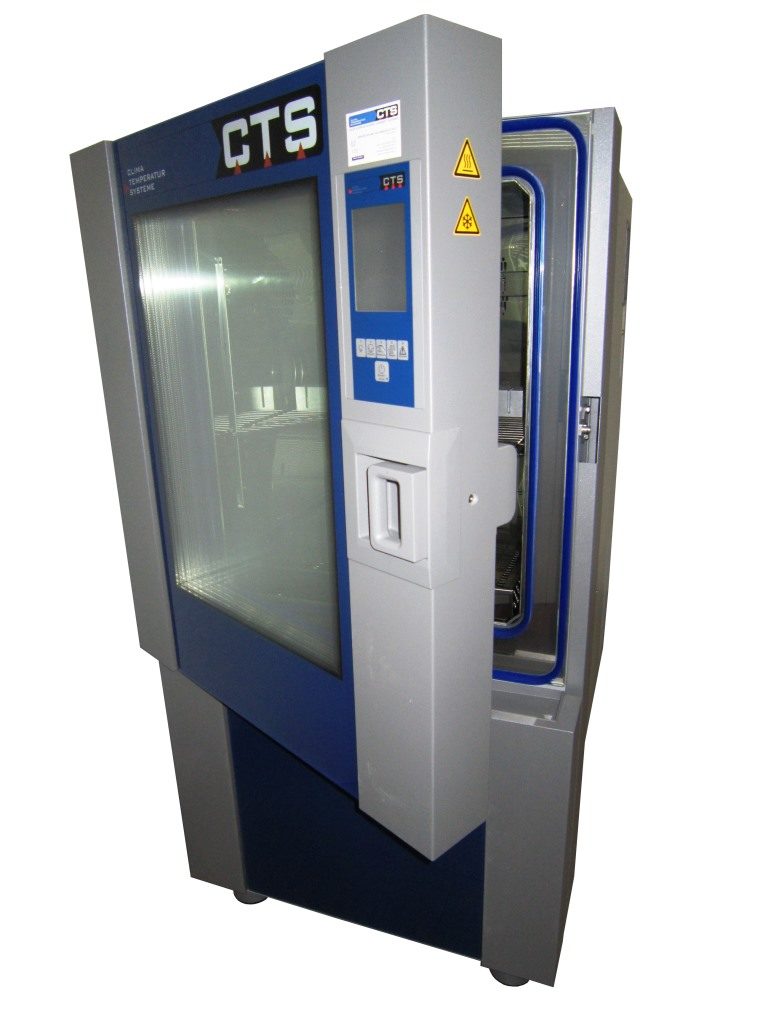

Climate Temperature System – CTS

This allowes us to simulate temperature and climate variations on the requirements and needs.

  • Control: microprocessor control and monitoring system
  • Test space: stainless steel grade1.4301
  • Refrigerants: Chloride free, hermetically sealed
  • Humidity system: capacitive measuring
  • Color LCD Touch Panel
  • external signaling for alarm messages
  • Programming on the touch panel or via PC
  • Data recording for logging
  • Pipe penetrations for connection cable
  • additional shelves for specimens
  • Ethernet interface for logging
  • Software for programming and documentation

Technical specifications

General

  • Test Space: 350 Liter
  • Test Space Dimensions:
    height: 750 mm
    width: 650 mm
    depth: 400 mm

Temperature Tests

  • Temperature Range: -70 bis +180 °C
  • Temp. Change Rate Cooling acc. IEC 60068-3-5: 4 K/min
  • Temp. Change Rate Heating acc. IEC 60068-3-5 :4 K/min
  • max. Thermal Load at +20°C: 3000 W
  • Temperature Fluctuation: ≤±0,3 K

Clima Tests

  • Temperature Range: +10 bis +95 °C
  • Humidity Range: 10 bis 98 % r. F.
  • Dew Point I: +7 bis +94 °C
  • Dew Point II: -10 bis +7 °C
  • Humidity Fluctuation I, zeitl.: ≤± 1,5 % r. F.
  • Humidity Fluctuation II, zeitl.: ≤± 3 % r. F.
  • Temperature Fluctuation: ≤± 0,3 K

We are happy to offer testing to our customers. After the test, you will receive an appropriate testing protocol. If you are interested on our service, write a short e-mail
